Applications

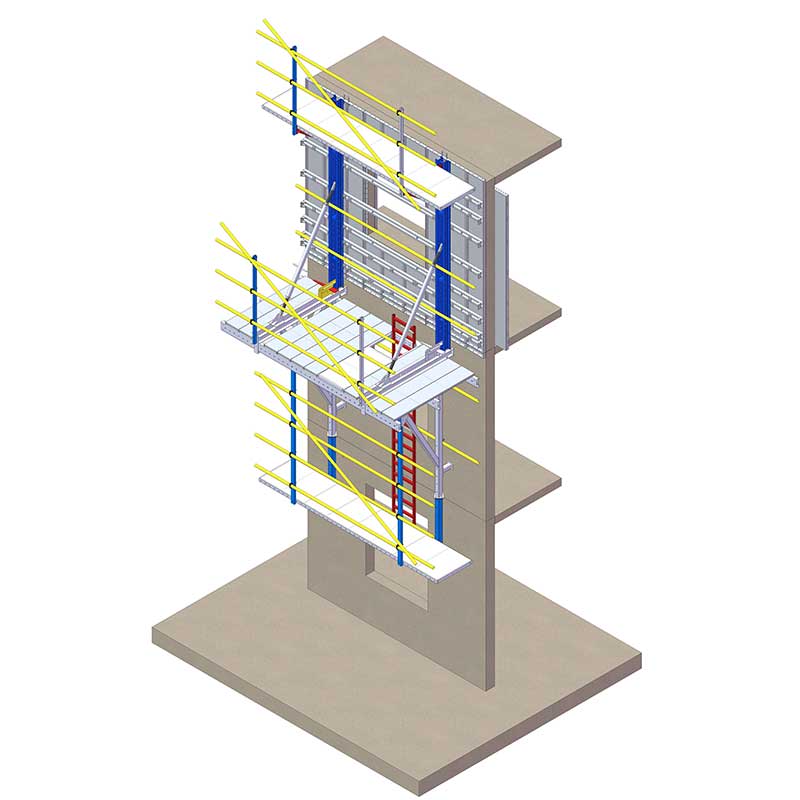

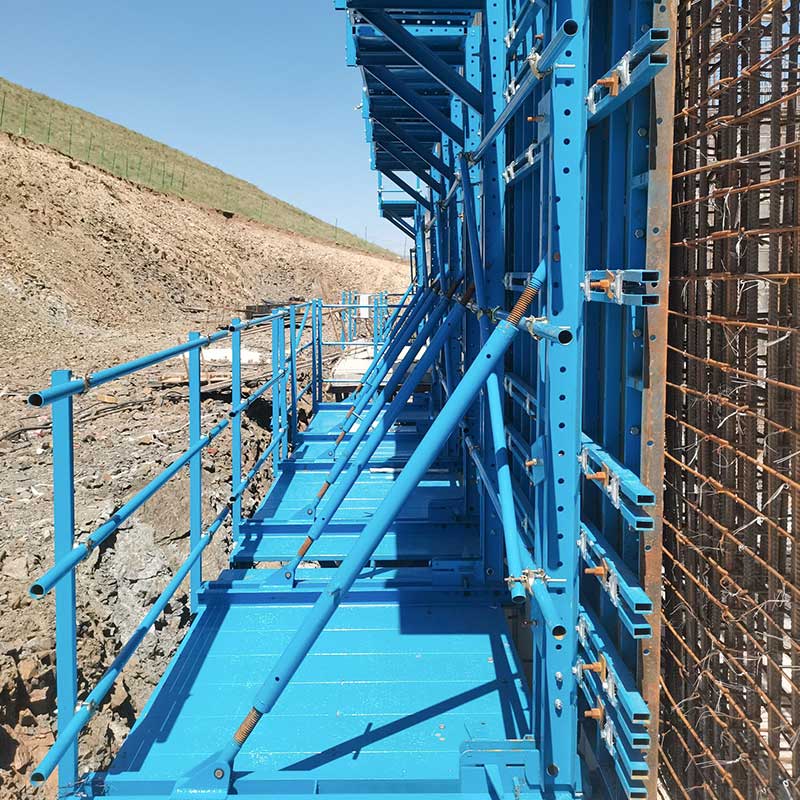

With large formwork panels and simple installation and operation, the system is suitable for vertical concrete structures in a wide range of residential and public projects, including external walls, elevator shafts, bridge piers, anchor blocks, nuclear containment outer shells, dams, and retaining walls. It integrates formwork, support, and working platform functions into one efficient and reliable overall solution.
Advantages
1. Cost-Effective
The simple system structure ensures efficiency and safety while reducing overall construction costs.
2. High Safety for Elevated Work
The brackets, formwork, and construction loads are jointly supported by tie rods, embedded anchors, and load-bearing triangular brackets, with no additional scaffolding required—ensuring clear load paths and improved construction safety.
3. Excellent Concrete Finish
The formwork is firmly fixed to the concrete through anchoring devices, effectively preventing grout leakage and misalignment. Large single-pour areas ensure smooth and high-quality concrete surfaces.
4. High Construction Efficiency
The formwork and brackets can be lifted together by a tower crane, enabling quick installation and operation and significantly shortening the construction cycle.
System Features
1. Flexible Adjustment and Strong Adaptability
The formwork can be adjusted vertically and horizontally relative to the support frame. With the diagonal brace, it can also tilt forward and backward (maximum ±18°), meeting different structural construction requirements.
2. Modular Connection
Components adopt a modular design with reliable connections for easy installation and dismantling.
3. Sufficient Working Space
The formwork can be opened during stripping to create about 600 mm of working space, facilitating embedded parts installation and formwork cleaning.
4. Adjustable Verticality
Adjustable diagonal braces allow convenient formwork alignment to ensure construction accuracy.
5. Standardized Design
Highly standardized connectors and components allow quick assembly and easy reuse.
6. Working Platform
Equipped with a platform for embedded parts removal and concrete surface treatment, improving construction convenience.
