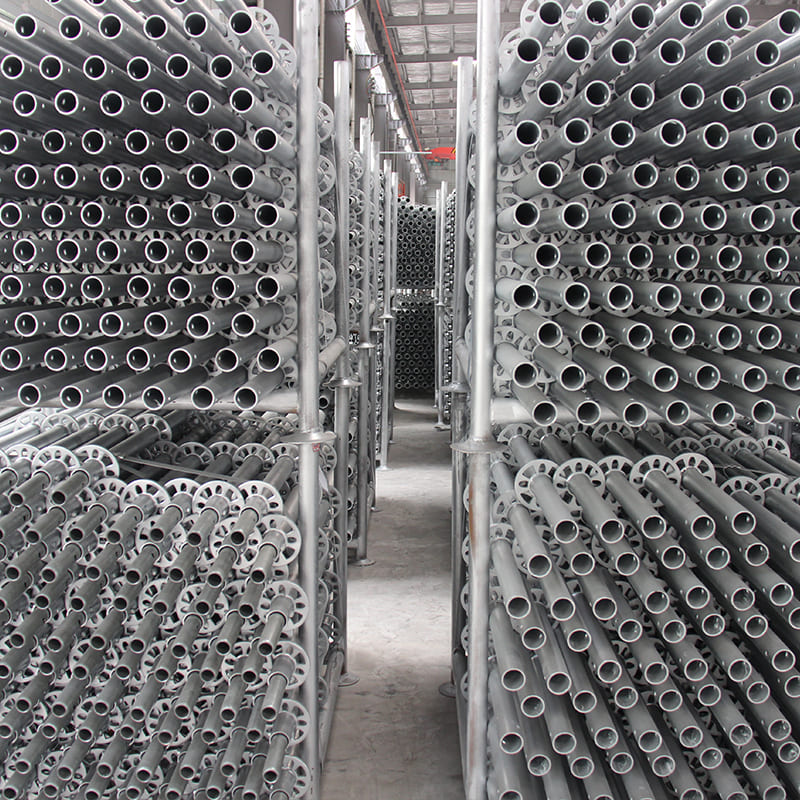

Ringlock Scaffolding System

The ringlock scaffolding system is mainly used to support bridge projects, tunnel projects, factory buildings, elevated water towers, power plants, oil refineries and other special factories, and can also be used in projects such as crossing bridges, cross beams, storage shelves, large stage and background frames.

It includes M48 and M60 standards, lengths ranging from 500mm to 3000mm, and the main materials are steel 0345 and 0235.

Advantages

  • Strong carrying capacity: the carrying capacity of a single pole is up to 19 tons (60 series).
  • Safe and reliable: The hot-dip galvanizing anti-corrosion process ensures a long service life.
  • Quick assembly: The unique design of the disc self-locking plug improves construction efficiency.
  • Economical and practical: Less steel consumption and lighter weight reduce transportation and labor costs.



Specifcation



Product

Material

Length(mm)

Outside Diameter(mm)

Thickness(mm)

Standard

Q355

500

48.3

3.25

1000

1500

2000

2500

3000



Product

Material

Surface Treatment

Specification(mm)

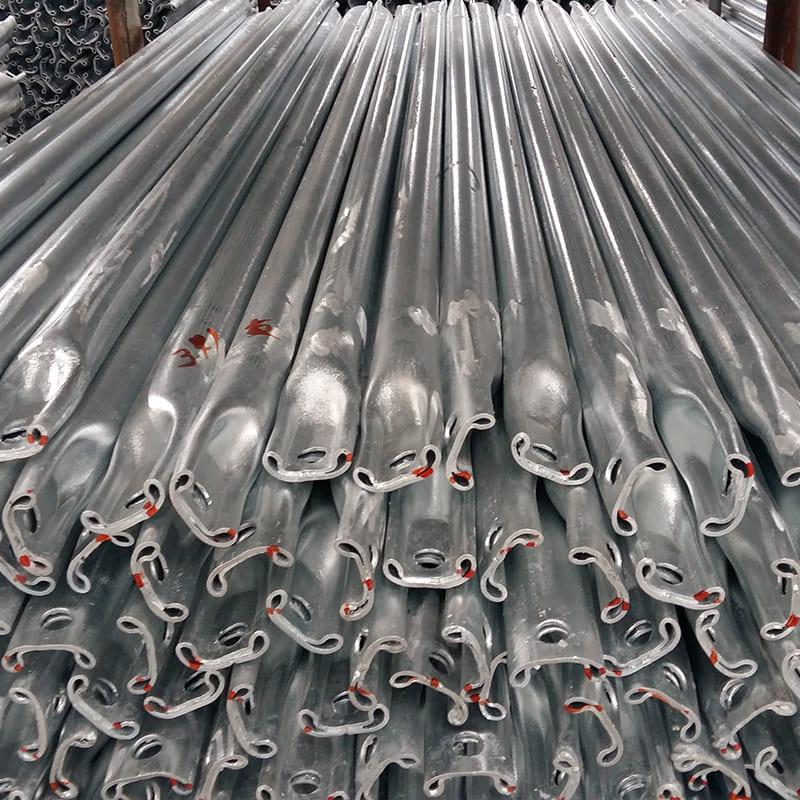

Diagonal
Brace



Q195
or
Q235B



re-galvanised/hot
dipped galvanised



42*2.75*900*1000

42*2.75*1200*1000

42*2.75*1500*1000

42*2.75*1800*1000

42*2.75*900*1500

42*2.75*1200*1500

42*2.75*1500*1500

42*2.75*1800*1500

42*2.75*900*2000

42*2.75*1200*2000

42*2.75*1500*2000

42*2.75*1800*2000



Product

Material

Length(mm)

Outside Diameter(mm)

Thickness(mm)

Ledger

Q235

300

48.3

2.75

600

900

1200

1500

1800

2100

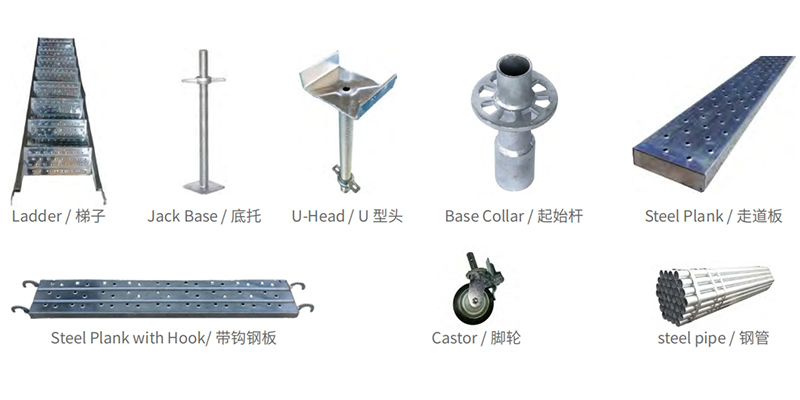

Components

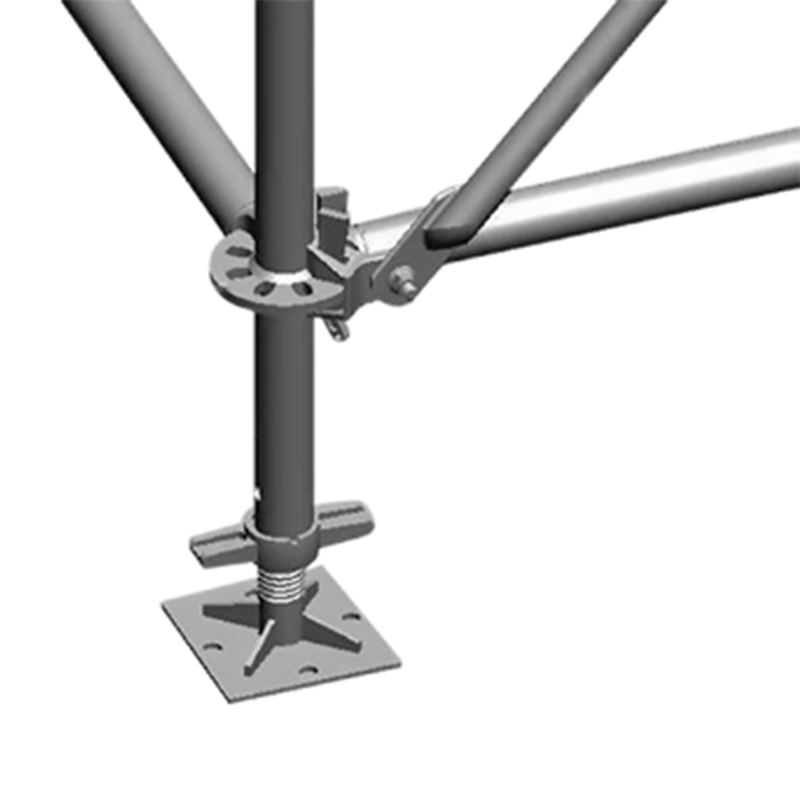

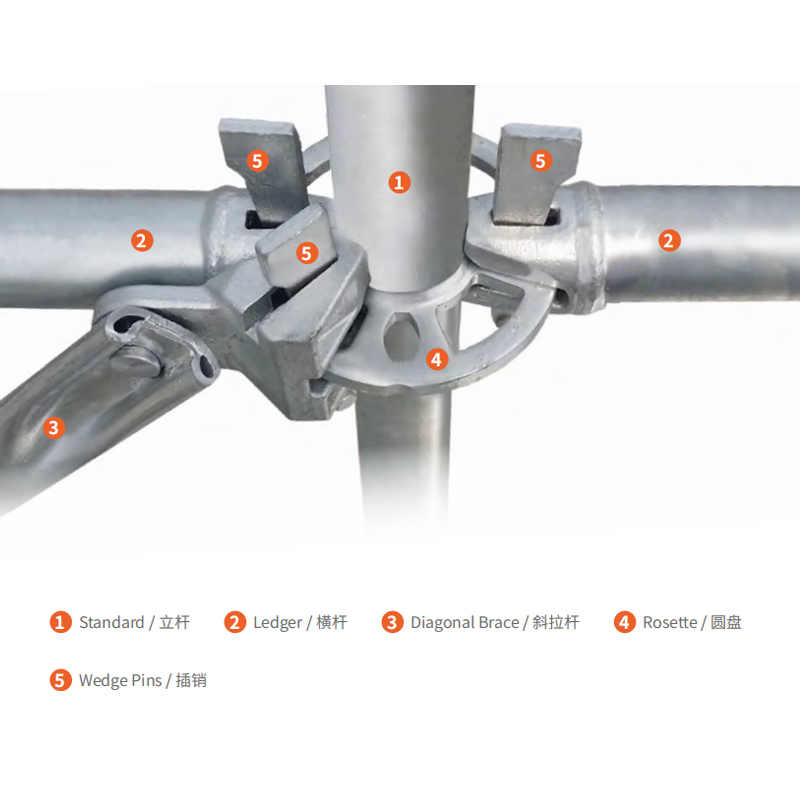

The ringlock scaffolding mainly consists of standard, ledger, diagonal brace, jack base, etc.

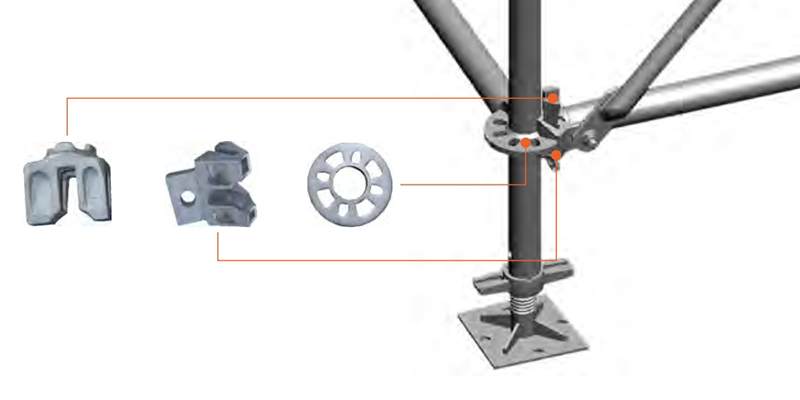

Main Accessories Of Ringlock Scaffolding

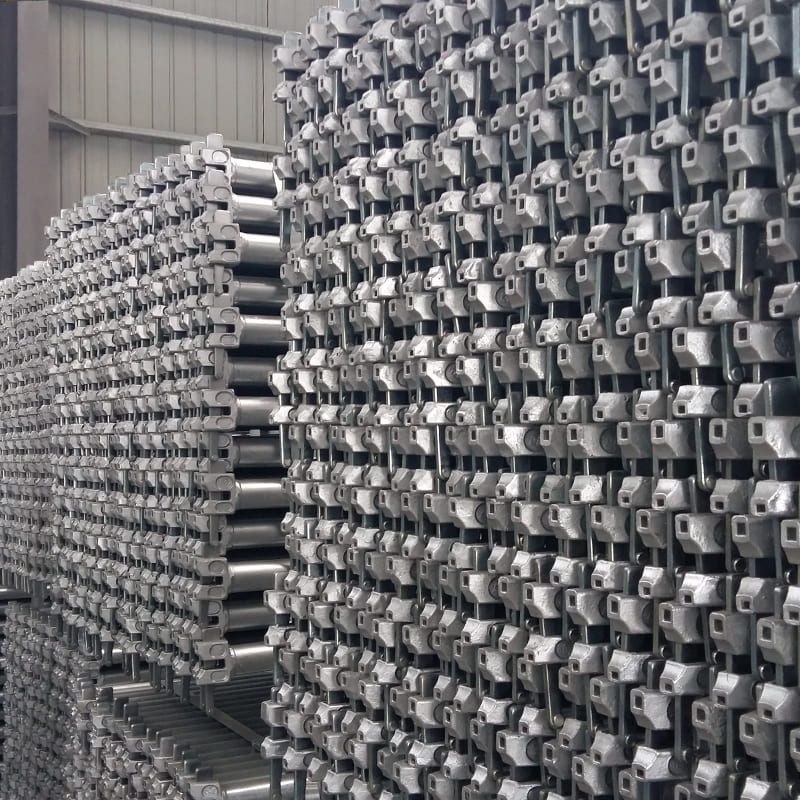

The main accessories of ringlock scaffolding consists of rosette, wedge pin, ledger head and diagonal head.

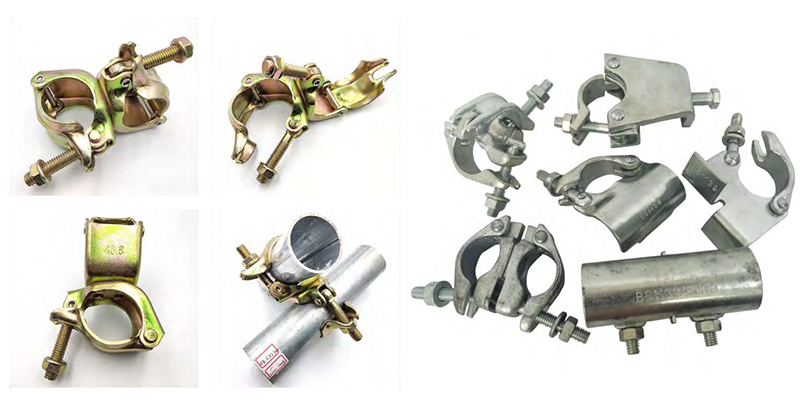

Coupler

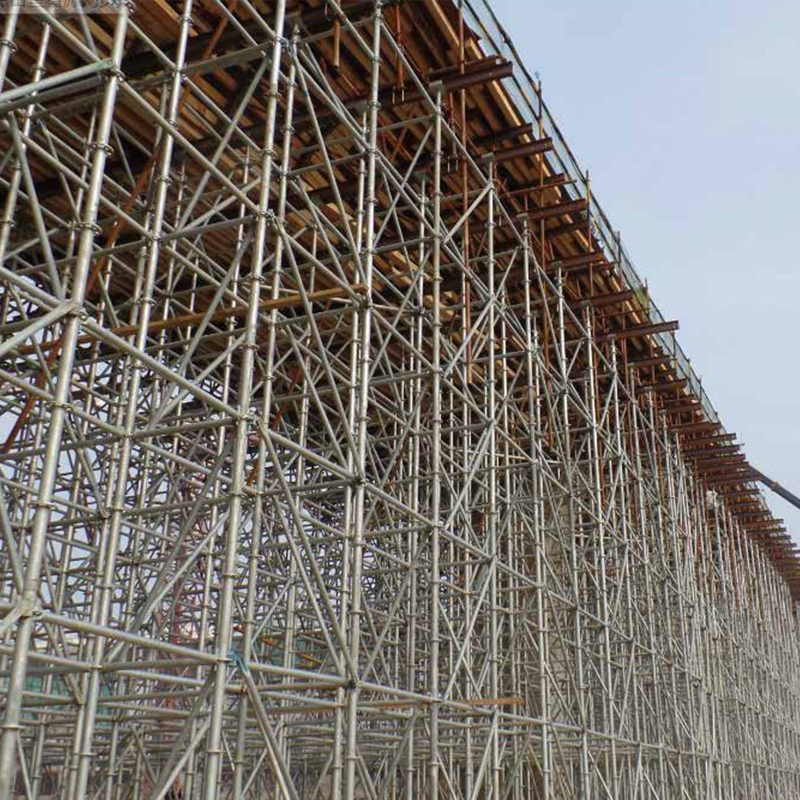

Application

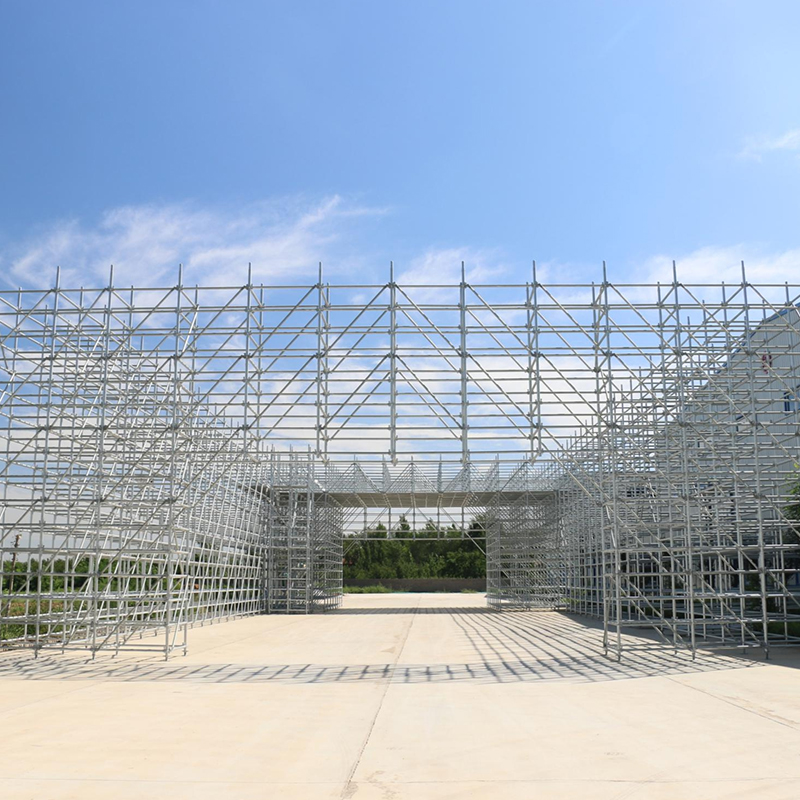

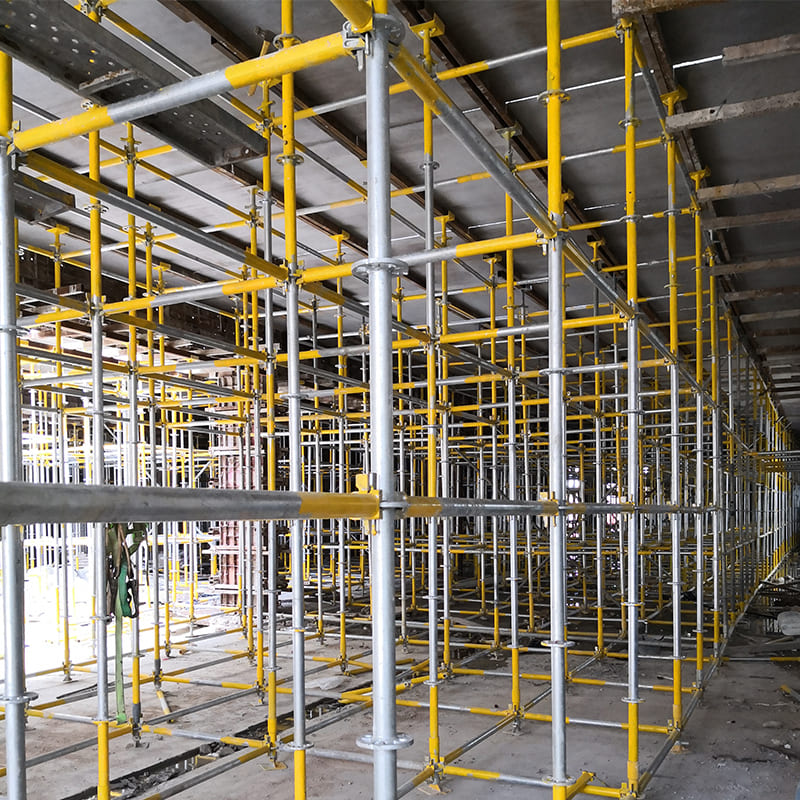

  • The 48mm system is mainly applied to civil construction projects, operating platforms, etc. (construction projects with relatively small loads)

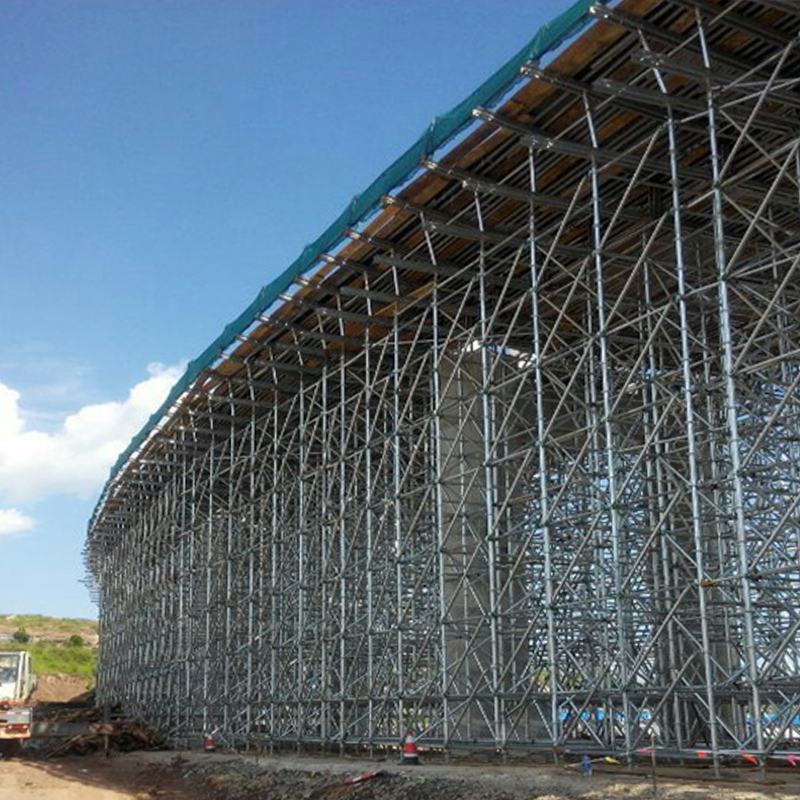

  • The 60mm system is mainly applied to municipal engineering, cast-in-place beams for rail transit, swivel bridges, freight viaducts, etc. (construction projects with relatively large loads)
