High-rise construction projects require advanced formwork solutions that can support fast construction cycles, accurate concrete forming, and safe working conditions at height. As building structures become taller and project schedules become more demanding, traditional formwork methods often need to be replaced by more integrated systems that improve efficiency and construction control.
A Gang Form System is an integrated large-panel formwork solution designed mainly for high-rise exterior wall construction. By combining steel formwork, external working platforms, and anchoring components into one complete unit, the system allows contractors to carry out repeated floor-by-floor construction with improved efficiency and consistency.
Unlike conventional formwork systems that require frequent dismantling and reassembly, a Gang Form System is designed as a climbing construction solution. After each concrete pouring cycle, the complete unit can be lifted and repositioned for the next level, creating a continuous workflow for high-rise projects.
GETO provides green building formwork and scaffolding solutions, including steel formwork, climbing systems, and other advanced construction technologies. The company’s Gang Form System is developed to support high-rise residential, commercial, industrial, and infrastructure construction with reliable performance and professional engineering support.
Definition and Context of Gang Form System
A Gang Form System is a large-scale integrated formwork system mainly used for exterior wall construction in high-rise buildings. The system combines several key components into one coordinated construction unit, including steel formwork panels, integrated working platforms, connection systems, and anchor systems.
The purpose of this integrated design is to create a complete working environment for both concrete forming and high-altitude construction operations. The steel formwork provides the required shape and support for concrete structures, while the external platform allows workers to safely complete installation, inspection, and related construction activities.
The anchoring system plays an essential role by connecting the Gang Form unit to the building structure. It provides stable support during concrete pouring and creates reliable fixing points during lifting and climbing operations.
Because of its integrated structure and repeated climbing capability, the Gang Form System is widely used in projects where exterior wall construction needs consistent quality and efficient floor cycles.
GETO Gang Form System Background
GETO focuses on green new building formwork and scaffolding solutions, covering aluminium formwork, steel formwork, climbing systems, fair-faced concrete formwork, and infrastructure construction products. The company has established global production bases and provides construction solutions for international markets.
The Gang Form System represents an efficient approach for modern high-rise construction by combining structural reliability with standardized installation methods.

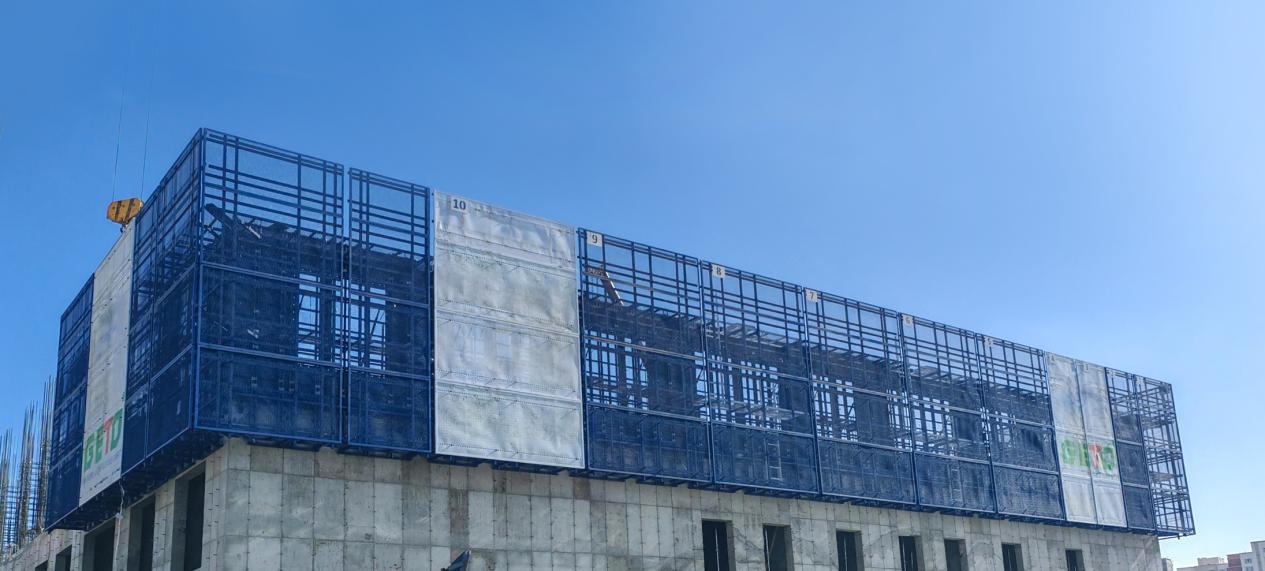

Alt:GETO High-Rise Building Gang Form System
Url:
How Does a Gang Form System Work?
The working principle of a Gang Form System is based on a repeated lifting and construction cycle. After the system is installed and fixed in position, concrete is poured into the steel formwork to create the required exterior wall structure.
Once the concrete reaches the required strength, the Gang Form unit is released and lifted upward as a complete assembly. The system is then secured at the next construction level and prepared for another concrete pouring cycle.
Overall Lifting Process
The complete Gang Form unit is usually moved by crane equipment. Instead of removing individual panels and rebuilding the formwork on every floor, the integrated system allows faster relocation and more consistent positioning.
Before lifting, several preparation steps are required:
- Checking the anchor connections
- Confirming structural stability
- Installing braces and steel wire ropes
- Verifying the alignment of the formwork unit
After the unit reaches the next level, the anchor system secures the structure and prepares it for the following construction stage.
Floor-by-Floor Climbing Construction
One of the major advantages of the Gang Form System is its ability to support continuous vertical construction. The system enables repetitive floor cycles and can support 2–4 levels of simultaneous operation depending on project requirements.
This makes it particularly suitable for high-rise residential towers and commercial buildings where exterior wall structures are repeated across many floors.
Key Design Factors of Gang Form System
A high-performance Gang Form System depends on the coordination of multiple structural components. Each element contributes to concrete quality, operational safety, and construction efficiency.
Steel Formwork System
The steel formwork system is the core forming component of the Gang Form System. It provides structural support during concrete pouring and maintains accurate dimensions after repeated use.
GETO steel formwork uses Q235 high-strength carbon steel with optimized panel thickness and surface treatment. The rigid steel structure improves concrete surface quality, reduces deformation, and supports repeated construction cycles.
Integrated Working Platform
The integrated working platform is installed outside the steel formwork and moves together with the climbing unit. It provides workers with access routes, operation space, material placement areas, and safety protection during exterior wall construction.
The platform includes anti-slip steel decking, guardrails, protective mesh, and access ladders. This integrated arrangement creates a safer and more organized working environment for high-rise operations.
Connection and Anchor System
The connection and anchor system is the main load-bearing and positioning structure of the Gang Form System. It connects the formwork, platform, and supporting components while resisting fresh concrete pressure during casting.
The system also helps control wall thickness, vertical alignment, and structural positioning. Reliable anchor design is essential for safe lifting, climbing operations, and long-term construction stability.
|
Component |
Specification and Function |
|
Steel Formwork Material |
Q235 high-strength carbon steel for stable concrete forming |
|
Panel Thickness |
3–6 mm steel panel thickness for strength and durability |
|
Standard Panel Size |
1200 × 2400 mm for common construction applications |
|
Flatness Tolerance |
±2 mm for accurate concrete surface control |
|
Surface Treatment |
Anti-rust oil coating for repeated use protection |
|
Working Platform |
Integrated external platform with anti-slip steel deck, guardrails, and protective mesh |
|
Guardrail Height |
≥1.2 m for external safety protection |
|
Tie Rod System |
High-strength tie rods Φ15–20 mm for connection and load resistance |
|
Anchor System |
Embedded anchor sockets for fixing, lifting, and climbing support |
Advantages and Limitations of Gang Form System
Enhanced Construction Safety
High-rise exterior wall work involves complex working conditions. The Gang Form System creates an enclosed working platform with guardrails and protective structures, providing workers with a more stable operating environment.
The integrated design reduces the need for repeated temporary access arrangements and improves site organization.
Improved Concrete Quality
The high rigidity of steel formwork helps maintain accurate dimensions during concrete pouring. Stable panels provide smoother concrete finishes and reduce problems such as leakage, deformation, and additional repair work.
Higher Construction Efficiency
The combination of ground assembly, crane lifting, climbing construction, and repeated operation cycles improves overall project productivity.
For large-scale high-rise projects, the Gang Form System can reduce formwork-related construction periods by approximately 30%–50% compared with traditional formwork methods, depending on project conditions and management efficiency.
Project Considerations
The system requires professional planning during the early project stage. Ground pre-assembly, lifting procedures, anchor positioning, and structural calculations need careful coordination to achieve optimal performance.
Applications of Gang Form System
The Gang Form System is suitable for various construction environments that require repeated concrete forming operations.
High-Rise Residential Buildings
Apartment towers and residential developments are common application areas because the system supports standardized floor cycles and consistent exterior wall quality.
Commercial and Industrial Buildings
Office buildings, hotels, industrial facilities, and large commercial projects can benefit from the system’s efficiency and structural stability.
Infrastructure and Special Structures
The system can also be customized for special concrete structures. Non-standard steel form modules can be designed for circular structures, irregular geometries, and unique architectural requirements.

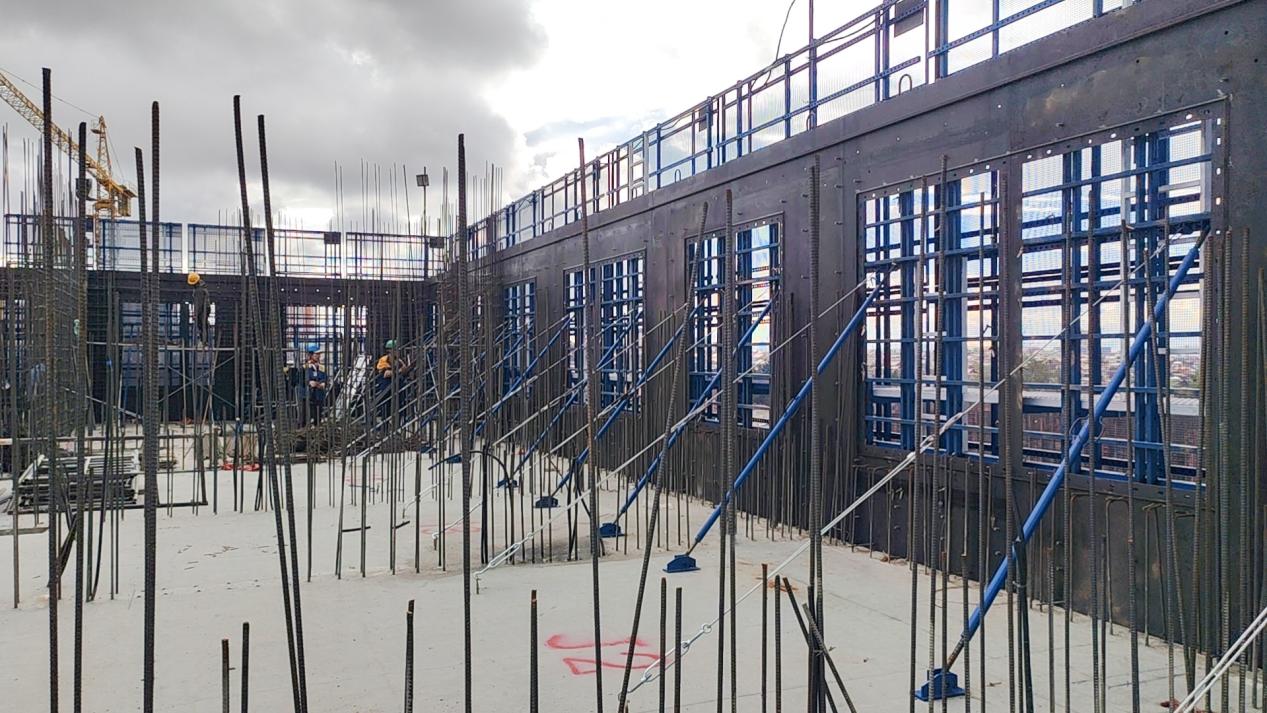

Alt:GETO Customized Gang Form System
Url:
Installation and Maintenance Recommendations
A professional installation process ensures stable operation and long service life.
Installation Process
The typical installation sequence includes:
1. Steel Formwork Assembly
Steel panels are assembled on the ground and connected using pins and wedges to create the initial formwork unit.
2. Structural Reinforcement
Horizontal #8 channel steels are welded to reinforce the steel formwork structure and improve rigidity.
3. Bracket and Platform Installation
Brackets are installed onto the steel formwork, followed by platform boards, access ladders, guardrails, and protective mesh.
4. Lifting and Anchoring
The completed Gang Form unit is lifted into position and secured through the anchor system.
5. Concrete Pouring and Climbing
After alignment and inspection, concrete pouring begins. When the concrete reaches the required strength, the system is lifted to the next level for the following construction cycle.
Maintenance Recommendations
Regular inspection and maintenance help extend the service life of the system.
Important maintenance practices include:
- Applying anti-rust protection to steel surfaces
- Checking connection components regularly
- Inspecting anchor points before each climbing cycle
- Keeping platforms and safety components in good condition
Proper maintenance ensures reliable performance throughout repeated construction operations.
Common Construction Mistakes
Ignoring Anchor System Inspection
The anchor system provides essential structural support during concrete pouring and climbing. Proper installation and inspection are necessary to maintain system stability.
Skipping Alignment Adjustment
The Gang Form unit should be accurately positioned and corrected before concrete pouring. Proper alignment helps achieve better wall accuracy and surface quality.
Incomplete Safety Protection
Protective mesh, guardrails, and reinforcement components are important parts of the system. Complete installation ensures safer high-rise construction operations.
Frequently Asked Questions About Gang Form System
How does a Gang Form System improve high-altitude safety?
The system improves safety through integrated working platforms, guardrails, protective mesh, and high-strength anchor components. These features provide stable support for workers during exterior wall construction.
What is the reuse capability of steel formwork?
Steel panels have high strength and resistance to deformation, making them suitable for repeated construction cycles. With proper maintenance and surface protection, the system can maintain stable forming performance for long-term projects.
Can Gang Form System be customized for special structures?
Yes. Customized steel form modules can be designed for circular, irregular, and other special concrete structures according to project requirements.
Conclusion
A Gang Form System is an efficient solution for high-rise exterior wall construction, integrating steel formwork, working platforms, and anchoring technology into one complete climbing system. Through repeated lifting cycles, accurate concrete forming, and improved site safety, it helps construction teams achieve better control over quality, efficiency, and project schedules.
With professional experience in green building formwork solutions and global construction applications, GETO provides reliable Gang Form System solutions designed to support modern high-rise building projects with advanced engineering, standardized production, and comprehensive technical services.
